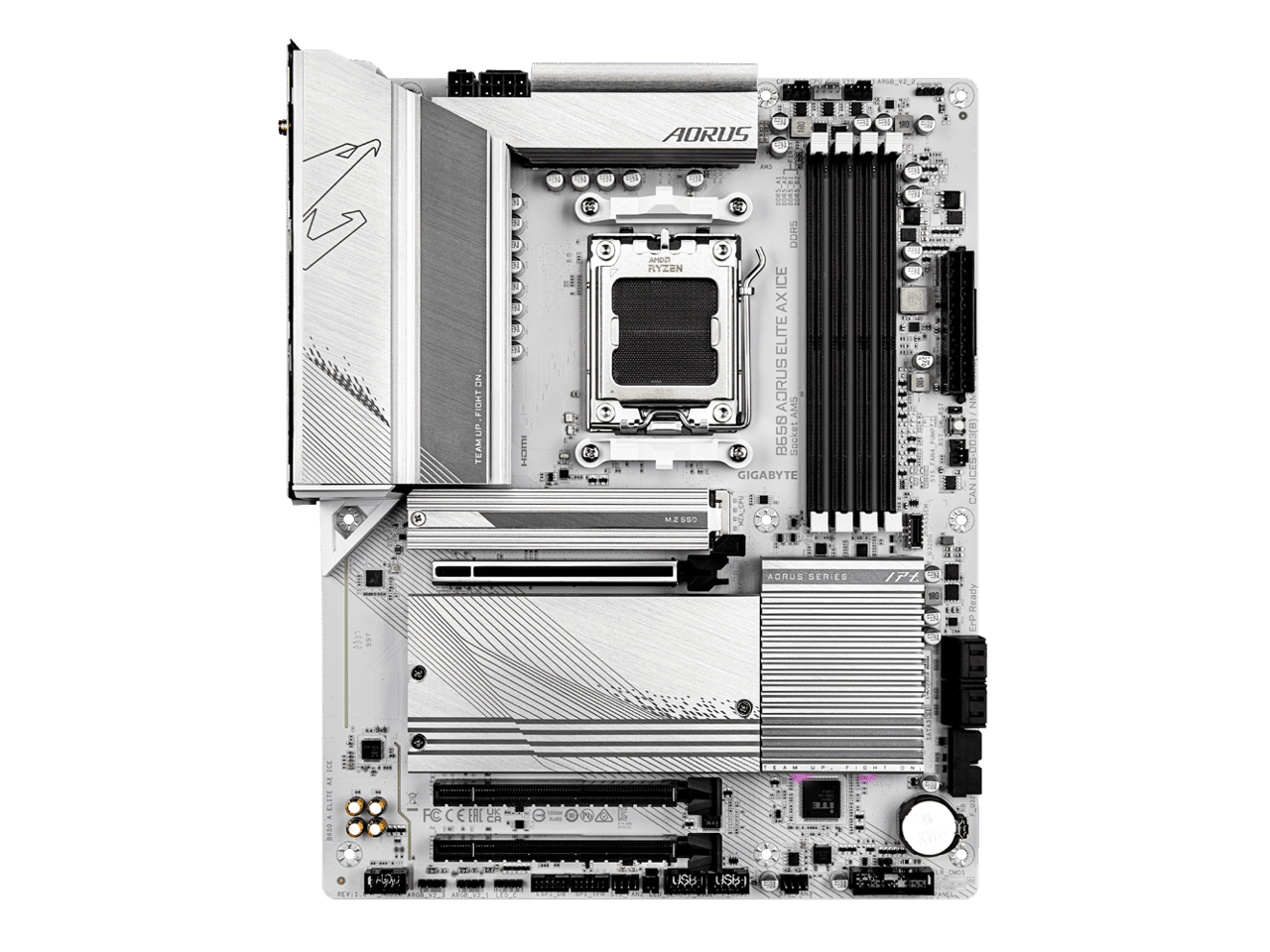

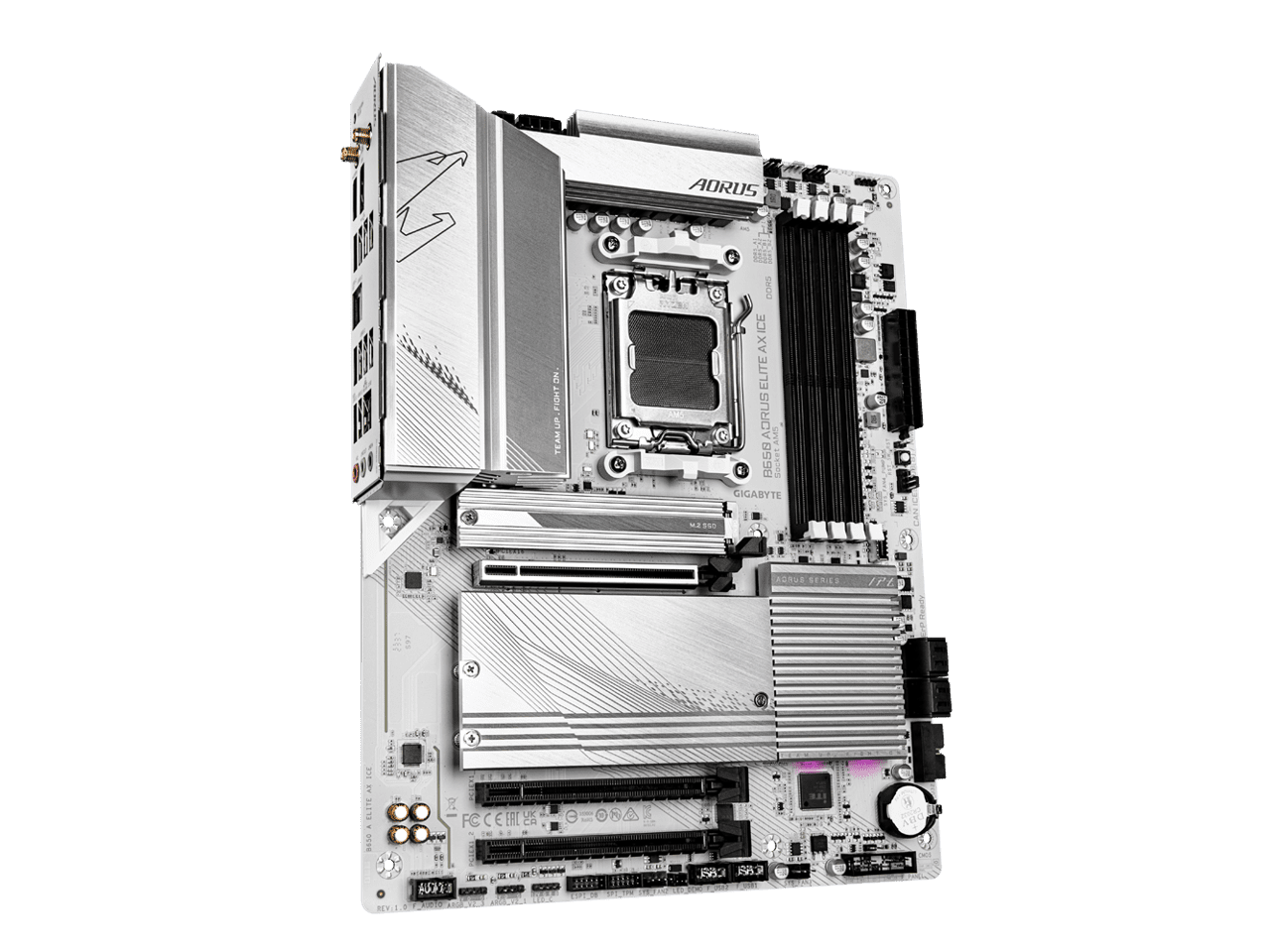

Aorus B650 AORUS ELITE AX ICE Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX (b650aoruseliteaxice)

<b><u>Processor &amp; Chipset</u><br></b><br><b>Chipset Manufacturer:</b> AMD<br><b>Chipset Model:</b> B650<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket AM5<br><b>Processor Supported:</b> Ryzen 7, Ryzen 5<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 192 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><b>Memory Speed Supported:</b> 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6666 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><b>Graphics Controller Model:</b> Radeon Graphics<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.3<br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11 a/b/g/n/ac/ax<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 3<br><b>PCI Express Standard:</b> PCI Express 3.0<br><b>Total Number of PCI Express Slots:</b> 3<br><b>Number of PCI Express x16 Slots:</b> 3<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 12<br><b>Number of USB 2.0 Ports:</b> 4<br><b>Number of USB 3.2 Gen 1 Ports:</b> 5<br><b>Number of USB 3.2 Gen 2 Type-A Ports:</b> 2<br><b>Number of USB 3.2 Gen 2 Type-C Ports:</b> 1<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 3<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> ATX<br><b>Width:</b> 12"<br><b>Depth:</b> 9.6"<br><br><b><u>Miscellaneous</u><br></b><br><b>Environmental Compliance:</b> China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
• 5-Year Warranty
• Dual Channel DDR5: 4*DIMMs & Intel XMP Memory Module Support
• Commanding Power Design: Twin 12+2+2 Phases, 8-Layer 2X Copper PCB
• Cutting-Edge Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• Next Gen Connectivity: PCIe 5.0, PCIe 5.0 NVMe x4 M.2, Front & Rear USB 3.2 Gen 2 Type-C
• EZ-Latch: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
• Fast Networking: 2.5GbE LAN, WiFi 6E, BT5.3
• Dynamic Audio: Hi-Fi Audio with High-End Audio Capacitors
• Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU
